Backstage on Google Cloud Quickstart

This quick-start deployment guide can be used to set up an environment to familiarize yourself with the architecture and get an understanding of the concepts related to hosting Backstage on Google Cloud.

NOTE: This environment is not intended to be a long lived environment. It is intended for temporary demonstration and learning purposes. You will need to modify the configurations provided to align with your orginazations needs. Along the way the guide will make callouts to tasks or areas that should be productionized in for long lived deployments.

Architecture

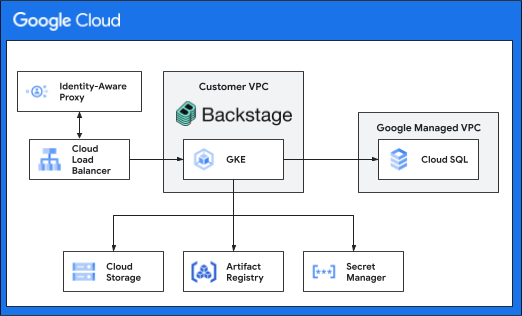

The following diagram depicts the high level architecture of the infrastucture that will be deployed.

architecture

Requirements and Assumptions

To keep this guide simple it makes a few assumptions. Where the are alternatives we have linked to some additional documentation.

  1. The Backstage quick start will be deployed in a new project that you will manually create. If you want to use a project managed through Terraform refer to the Terraform managed project section.
  2. Identity Aware Proxy (IAP) will be used for controlling access to Backstage.

Before you begin

In this section you prepare a folder for deployment.

  1. Open the Cloud Console
  2. Activate Cloud Shell \ At the bottom of the Cloud Console, a Cloud Shell session starts and displays a command-line prompt.

Project Creation

In this section you prepare your project for deployment.

  1. Go to the project selector page in the Cloud Console. Select or create a Cloud project.

  2. Make sure that billing is enabled for your Google Cloud project. Learn how to confirm billing is enabled for your project.

  3. In Cloud Shell, set environment variables with the ID of your project:

    export PROJECT_ID=<INSERT_YOUR_PROJECT_ID>
    gcloud config set project "${PROJECT_ID}"

  4. Clone the repository and change directory to the guide directory

    git clone https://github.com/GoogleCloudPlatform/platform-engineering && \
    cd platform-engineering/reference-architectures/backstage/backstage-quickstart

  5. Set environment variables

    export BACKSTAGE_QS_BASE_DIR=$(pwd) && \
    sed -n -i -e '/^export BACKSTAGE_QS_BASE_DIR=/!p' -i -e '$aexport  \
    BACKSTAGE_QS_BASE_DIR="'"${BACKSTAGE_QS_BASE_DIR}"'"' ${HOME}/.bashrc


Project Configuration

  1. Set the project environment variables in Cloud Shell

    export BACKSTAGE_QS_STATE_BUCKET="${PROJECT_ID}-terraform"
    export IAP_USER_DOMAIN="<your org's domain>"
    export IAP_SUPPORT_EMAIL="<your org's support email>"

  2. Create a Cloud Storage bucket to store the Terraform state

    gcloud storage buckets create gs://${BACKSTAGE_QS_STATE_BUCKET} --project ${PROJECT_ID}


Deploy Backstage

Before running Terraform, make sure that the Service Usage API and Service Management API are enabled.

  1. Enable Service Usage API and Service Management API

    gcloud services enable \
      cloudresourcemanager.googleapis.com \
      iap.googleapis.com \
      serviceusage.googleapis.com \
      servicemanagement.googleapis.com

  2. Setup the Identity Aware Proxy brand

    gcloud iap oauth-brands create \
      --application_title="IAP Secured Backstage" \
      --project="${PROJECT_ID}" \
      --support_email="${IAP_SUPPORT_EMAIL}"


    Capture the brand name in an environment variable, it will be in the format of: projects/[your_project_number]/brands/[your_project_number].

    export IAP_BRAND=<your_brand_name>

  3. Using the brand name create the IAP client.

    gcloud iap oauth-clients create \
      ${IAP_BRAND} \
      --display_name="IAP Secured Backstage"


    Capture the client_id and client_secret in environment variables. For the client_id we only need the last value of the string, it will be in the format of: 549085115274-ksi3n9n41tp1vif79dda5ofauk0ebes9.apps.googleusercontent.com

    export IAP_CLIENT_ID="<your_client_id>"
    export IAP_SECRET="<your_iap_secret>"

  4. Set the configuration variables

    sed -i "s/YOUR_STATE_BUCKET/${BACKSTAGE_QS_STATE_BUCKET}/g" ${BACKSTAGE_QS_BASE_DIR}/backend.tf
    sed -i "s/YOUR_PROJECT_ID/${PROJECT_ID}/g" ${BACKSTAGE_QS_BASE_DIR}/backstage-qs.auto.tfvars
    sed -i "s/YOUR_IAP_USER_DOMAIN/${IAP_USER_DOMAIN}/g" ${BACKSTAGE_QS_BASE_DIR}/backstage-qs.auto.tfvars
    sed -i "s/YOUR_IAP_SUPPORT_EMAIL/${IAP_SUPPORT_EMAIL}/g" ${BACKSTAGE_QS_BASE_DIR}/backstage-qs.auto.tfvars
    sed -i "s/YOUR_IAP_CLIENT_ID/${IAP_CLIENT_ID}/g" ${BACKSTAGE_QS_BASE_DIR}/backstage-qs.auto.tfvars
    sed -i "s/YOUR_IAP_SECRET/${IAP_SECRET}/g" ${BACKSTAGE_QS_BASE_DIR}/backstage-qs.auto.tfvars

  5. Create the resources

    cd ${BACKSTAGE_QS_BASE_DIR} && \
    terraform init && \
    terraform plan -input=false -out=tfplan && \
    terraform apply -input=false tfplan && \
    rm tfplan


    Initial run of the Terraform may result in errors due to they way the API services are asyrchonously enabled. Re-running the terraform usually resolves the errors.

    This will take a while to create all of the required resources, figure somewhere between 15 and 20 minutes.

  6. Build the container image for Backstage

    cd manifests/cloudbuild
    gcloud builds submit .


    The output of that command will include a fully qualified image path similar to: us-central1-docker.pkg.dev/[your_project]/backstage-qs/backstage-quickstart:d747db2a-deef-4783-8a0e-3b36e568f6fc Using that value create a new environment variable.

    export IMAGE_PATH="<your_image_path>"


    This will take approximately 10 minutes to build and push the image.

  7. Configure Cloud SQL postgres user for password authentication.

    gcloud sql users set-password postgres --instance=backstage-qs --prompt-for-password

  8. Grant the backstage workload service account create database permissions.

    a. In the Cloud Console, navigate to SQL

    b. Select the database instance

    c. In the left menu select Cloud SQL Studio

    d. Choose the postgres database and login with the postgres user and password you created in step 4.

    e. Run the following sql commands, to grant create database permissions

    ALTER USER "backstage-qs-workload@[your_project_id].iam" CREATEDB

  9. Perform an initial deployment of Kubernetes resources.

    cd ../k8s
    sed -i "s%CONTAINER_IMAGE%${IMAGE_PATH}%g" deployment.yaml
    gcloud container clusters get-credentials backstage-qs --region us-central1 --dns-endpoint
    kubectl apply -f .

  10. Capture the IAP audience, the Backend Service may take a few minutes to appear.

    a. In the Cloud Console, navigate to Security > Identity-Aware Proxy

    b. Verify the IAP option is set to enabled. If not enable it now.

    b. Choose Get JWT audience code from the three dot menu on the right side of your Backend Service.

    c. The value will be in the format of: /projects/<your_project_number>/global/backendServices/<numeric_id>. Using that value create a new environment variable.

    export IAP_AUDIENCE_VALUE="<your_iap_audience_value>"

  11. Redeploy the Kubernetes manifests with the IAP audience

    sed -i "s%IAP_AUDIENCE_VALUE%${IAP_AUDIENCE_VALUE}%g" deployment.yaml
    kubectl apply -f .

  12. In a browser navigate to you backstage endpoint. The URL will be similar to https://qs.endpoints.[your_project_id].cloud.goog

Cleanup

  1. Destroy the resources using Terraform destroy

    cd ${BACKSTAGE_QS_BASE_DIR} && \
    terraform init && \
    terraform destroy -auto-approve && \
    rm -rf .terraform .terraform.lock.hcl

  2. Delete the project

    gcloud projects delete ${PROJECT_ID}

  3. Remove Terraform files and temporary files

    cd ${BACKSTAGE_QS_BASE_DIR} && \
    rm -rf \
    .terraform \
    .terraform.lock.hcl \
    initialize/.terraform \
    initialize/.terraform.lock.hcl \
    initialize/backend.tf.local \
    initialize/state

  4. Reset the TF variables file

    cd ${BACKSTAGE_QS_BASE_DIR} && \
    cp backstage-qs-auto.tfvars.local backstage-qs.auto.tfvars

  5. Remove the environment variables

    sed \
    -i -e '/^export BACKSTAGE_QS_BASE_DIR=/d' \
    ${HOME}/.bashrc


Advanced Options

Terraform managed project

In some instances you will need to create and manage the project through Terraform. This quickstart provides a sample process and Terraform to create and destory the project via Terraform.

To run this part of the quick start you will need the following information and permissions.

  • Billing account ID
  • Organization or folder ID
  • roles/billing.user IAM permissions on the billing account specified
  • roles/resourcemanager.projectCreator IAM permissions on the organization or folder specified

Creating a Terraform managed project

  1. Set the configuration variables

    nano ${BACKSTAGE_QS_BASE_DIR}/initialize/initialize.auto.tfvars

    environment_name  = "qs"
    iapUserDomain = ""
    iapSupportEmail = ""
    project = {
      billing_account_id = "XXXXXX-XXXXXX-XXXXXX"
      folder_id          = "############"
      name               = "backstage"
      org_id             = "############"
    }


    Values required :

    • environment_name: the name of the environment (defaults to qs for quickstart)
    • iapUserDomain: the root domain of the GCP Org that the Backstage users will be in
    • iapSupportEmail: support contact for the IAP brand
    • project.billing_account_id: the billing account ID
    • project.name: the prefix for the display name of the project, the full name will be <project.name>-<environment_name>
    • Either project.folder_id OR project.org_id
      • project.folder_id: the Google Cloud folder ID
      • project.org_id: the Google Cloud organization ID
  2. Authorize gcloud

    gcloud auth login --activate --no-launch-browser --quiet --update-adc

  3. Create a new project

    cd ${BACKSTAGE_QS_BASE_DIR}/initialize
    terraform init && \
    terraform plan -input=false -out=tfplan && \
    terraform apply -input=false tfplan && \
    rm tfplan && \
    terraform init -force-copy -migrate-state && \
    rm -rf state

  4. Set the project environment variables in Cloud Shell

    PROJECT_ID=$(grep environment_project_id \
    ${BACKSTAGE_QS_BASE_DIR}/backstage-qs.auto.tfvars |
    awk -F"=" '{print $2}' | xargs)


Cleaning up a Terraform managed project

  1. Destroy the project

    cd ${BACKSTAGE_QS_BASE_DIR}/initialize && \
    TERRAFORM_BUCKET_NAME=$(grep bucket backend.tf | awk -F"=" '{print $2}' |
    xargs) && \
    cp backend.tf.local backend.tf && \
    terraform init -force-copy -lock=false -migrate-state && \
    gsutil -m rm -rf gs://${TERRAFORM_BUCKET_NAME}/* && \
    terraform init && \
    terraform destroy -auto-approve  && \
    rm -rf .terraform .terraform.lock.hcl state/


Re-using an Existing Project

In situations where you have run this quickstart before and then cleaned-up the resources but are re-using the project, it might be neccasary to restore the endpoints from a deleted state first.

BACKSTAGE_QS_PREFIX=$(grep environment_name \
${BACKSTAGE_QS_BASE_DIR}/backstage-qs.auto.tfvars | awk -F"=" '{print $2}' | xargs)
BACKSTAGE_QS_PROJECT_ID=$(grep environment_project_id \
${BACKSTAGE_QS_BASE_DIR}/backstage-qs.auto.tfvars | awk -F"=" '{print $2}' | xargs)
gcloud endpoints services undelete \
${BACKSTAGE_QS_PREFIX}.endpoints.${BACKSTAGE_QS_PROJECT_ID}.cloud.goog \
--quiet 2>/dev/null
