Settings & troubleshooting¶

This page is the reference for every cxas.* setting the extension exposes, plus the fixes for the most common breakage. For a more guided tour of the day-to-day features, start with Authoring features.

Settings reference¶

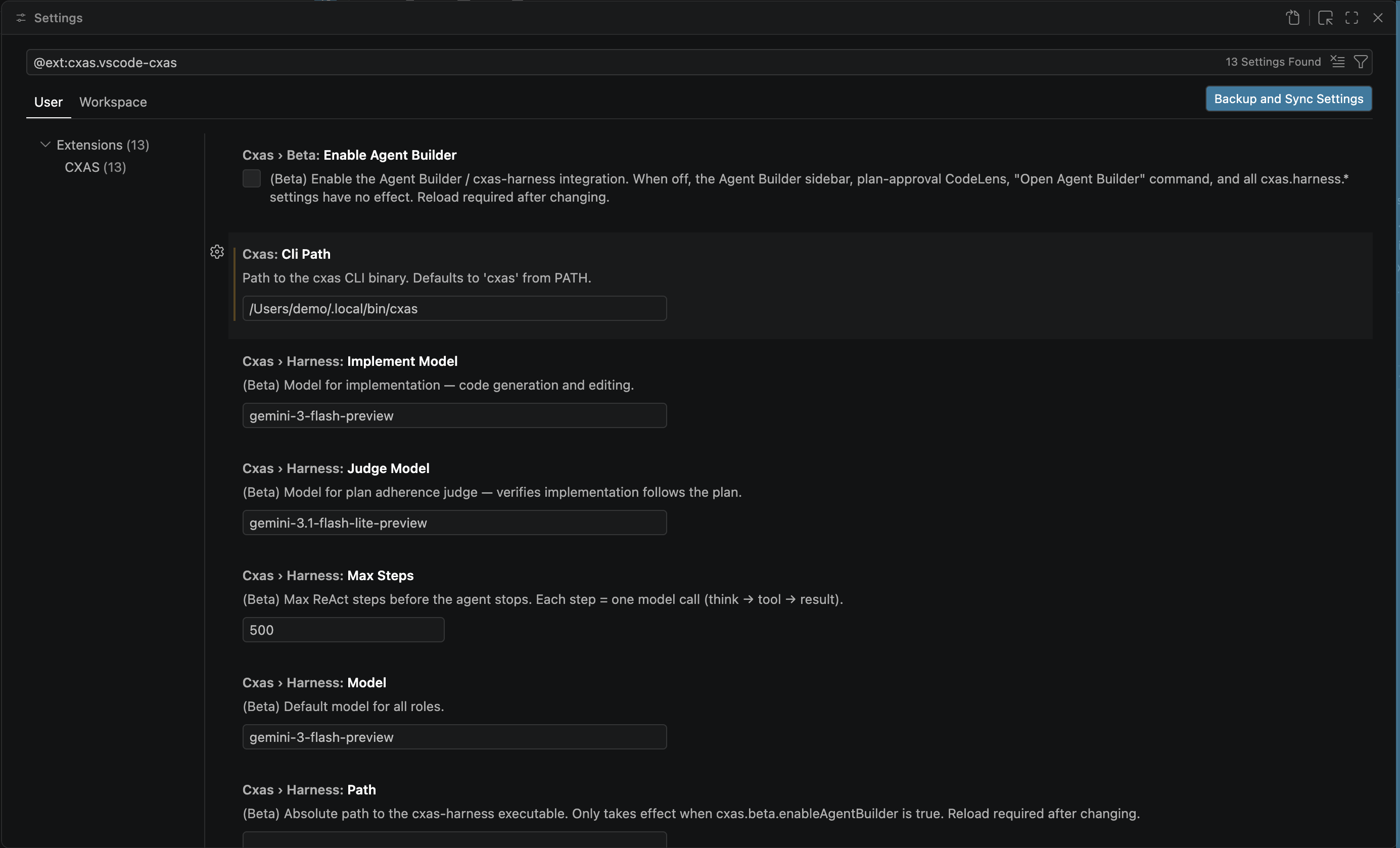

Open VS Code Settings (Cmd+,) and type cxas in the search bar to see all options:

VS Code Settings UI filtered to 'cxas' showing Cxas: Cli Path with /Users/demo/.local/bin/cxas, plus a few entries above the visible options

Setting	Default	Purpose
`cxas.cliPath`	`cxas`	Path to the `cxas` CLI binary. Set this if `cxas` isn't on your shell `PATH` (or the same `PATH` VS Code resolves), or if you maintain multiple installs (e.g. one in a project virtualenv).
`cxas.pythonPath`	(empty — falls back to `python3`)	Override the Python interpreter the extension uses to invoke helper scripts. Useful when the system Python doesn't have `cxas-scrapi` installed but a project virtualenv does.
`cxas.lintOnSave`	`true`	Auto-run `cxas lint` whenever a project file is saved. Set to `false` if the on-save run is too noisy mid-edit; the inline lint and `Cmd+Shift+L` keybinding still work either way.
`cxas.scriptsPath`	(empty — auto-detected from `.agents/skills/`)	Path to the bundled CXAS helper scripts directory. Leave blank unless you've moved the scripts somewhere non-standard.
`cxas.oauthToken`	(empty)	OAuth token override for CES API authentication. Use this only when ADC isn't available; in normal development run `gcloud auth application-default login` instead.

The keyboard shortcut Cmd+Shift+L (Ctrl+Shift+L on Linux/Windows) is bound to CXAS: Lint App while an editor has focus. Rebind it via VS Code's Keyboard Shortcuts UI (search cxas.lint).

Common issues¶

cxas CLI not found keeps showing after install.: Reload the window (Developer: Reload Window). If it still appears, the Python that has cxas-scrapi installed isn't the one VS Code resolved. Set cxas.cliPath to the absolute path of the cxas binary (use which cxas from a terminal where it works) and cxas.pythonPath to the matching interpreter.
pip install fails with permission errors.: Install in user scope: pip install --user cxas-scrapi. If you're behind a corporate proxy or private package index, configure pip first and re-run the install command.
Lint output is empty or wrong.: Run CXAS: Lint App from the Command Palette to see the raw output in the CXAS output channel. Confirm the active project (status bar, lower-left) points at the workspace you expect; the lint runs against that project, not against whichever file you happen to have open.

Push or pull fails with gcloud auth errors. :

gcloud auth application-default login
gcloud config set project YOUR_PROJECT_ID

Then reload the window so the extension picks up the refreshed credentials.

Tree view doesn't update after I add a file outside VS Code.: Click the refresh icon on the CXAS Project panel header. The extension watches files inside common directories (agents/, tools/, evals/, app.json), but a refresh forces a full re-scan.
Inline lint shows different results than cxas lint.: The inline checker runs a fast TypeScript subset of the rules to keep typing responsive. The full Python linter (cxas lint) is authoritative; if the two disagree, trust the on-save / Cmd+Shift+L run.
Push App fails with 404 Not Found.: gecx-config.json has a stale deployed_app_id. Either delete the field and re-create the app with CXAS: Create App, or paste in the resource name of the app you actually want to push to.
Live Chat shows permission denied or hangs after sending a message.: The deployed app may be in an error state, or your credentials lack cxas.runConversation permission. Open the app in the GCP console (right-click the app node → Open in Console) and confirm the latest deployment is healthy.

Filing issues¶

When reporting a bug, include:

The CXAS output channel contents (View → Output → CXAS)
VS Code version (Code → About), OS, and cxas --version from a terminal
Steps to reproduce, what you expected, what happened
A minimal repro project if the bug is reproducible (the Quickstart demo is a good base)

Where to go next¶

Overview: Back to the section landing page.
Quickstart: The end-to-end demo, useful for confirming a fresh install works.
