Migrate live traffic from Amazon EKS to GKE using reverse proxies

This tutorial shows you how to migrate a live HTTP service from Amazon Elastic Kubernetes Service (EKS) to Google Kubernetes Engine (GKE) while minimizing downtime. You deploy a temporary NGINX reverse proxy in GKE to forward traffic to EKS, then use Gateway API weights to shift traffic to GKE backends.

This tutorial takes approximately 45 minutes to complete.

Overview

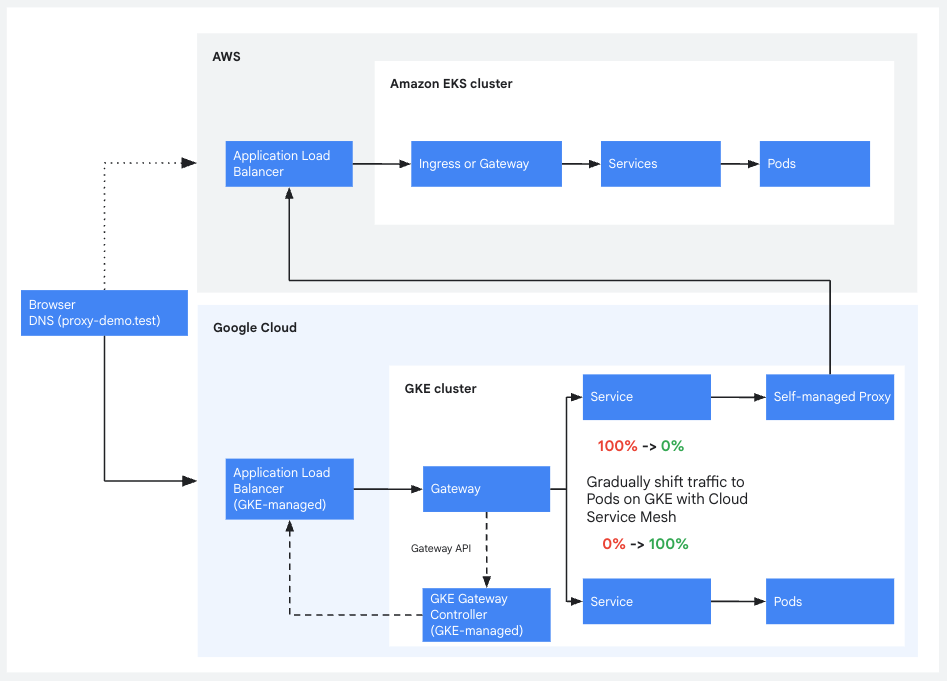

Architecture

The migration follows these stages:

  1. Deploy the application to EKS.
  2. Start a continuous Locust load test that runs for the duration of the migration.
  3. Deploy the same application to GKE.
  4. Deploy a GKE Gateway, NGINX reverse proxy, and HTTPRoute that routes 100% of Gateway traffic to EKS through the proxy.
  5. Validate that EKS is still serving through the Gateway and proxy.
  6. Cut over proxy-demo.test to the GKE Gateway IP.
  7. Shift HTTPRoute traffic from 100% proxy to 100% GKE in increments, checking the Locust dashboard at each step.
  8. Decommission the proxy and review the Locust results.

Objectives

  • Deploy a containerized application to both Amazon EKS and GKE using Terraform.
  • Use a GKE Gateway and HTTPRoute to control traffic distribution between two backends.
  • Demonstrate a DNS cutover with minimal disruption using a containerized proxy and the Docker --add-host feature.
  • Use an NGINX reverse proxy as a temporary bridge between clouds during traffic shifting.
  • Validate the migration by monitoring a continuous Locust load test from start to finish.

Costs

This tutorial uses billable components:

AWS

Google Cloud

Use the Google Cloud Pricing Calculator to generate a cost estimate based on your projected usage.

To avoid continued charges, follow the instructions in Clean up.

Before you begin

  1. Create a Google Cloud project or select an existing project.

  2. Enable billing for your Google Cloud project.

  3. Enable the GKE, Compute Engine, and Cloud NAT APIs.

[!CAUTION] Use a local environment. Cloud Shell's 5GB disk limit is insufficient, and its ephemeral sessions clears your environment variables upon timeout.

AWS permissions

Your AWS credentials need permissions to create and manage the following resources:

  • IAM Roles and Policies: For the EKS control plane and nodes
  • VPC and Networking: VPC, subnets, security groups, and route tables
  • EKS Cluster: The Kubernetes control plane and worker nodes

For demonstration purposes, the AdministratorAccess managed policy is sufficient. In a production setting, always adhere to the principle of least privilege.

Google Cloud permissions

Ensure your user account or service account has the following IAM roles in your Google Cloud project:

  • Kubernetes Engine Admin (roles/container.admin): To create and manage the GKE cluster
  • Compute Network Admin (roles/compute.networkAdmin): To manage VPC networks, Cloud NAT, and the GKE Gateway
  • Service Account Admin (roles/iam.serviceAccountAdmin): To create service accounts for GKE nodes and other resources
  • Project IAM Admin (roles/resourcemanager.projectIamAdmin): To grant IAM roles to service accounts

For demonstration purposes, the basic Owner role (roles/owner) is sufficient. In a production setting, always adhere to the principle of least privilege.

Install the following tools:

Provision the source (EKS)

Provision the EKS cluster and deploy the application behind an Application Load Balancer (ALB).

  1. Configure the AWS CLI with credentials that have permissions to create EKS clusters and IAM roles:

    aws configure

  2. Set your resource prefix and deploy the source environment:

    PREFIX=YOUR_PREFIX scripts/01-deploy-aws.sh

    Replace YOUR_PREFIX with a short identifier. The scripts prepend this value to all resource names.

    The script provisions the following resources: - An EKS cluster - A Kubernetes Deployment and LoadBalancer Service

    `proxy-demo.test` is a local-only hostname used throughout this tutorial
as a stand-in for a real production domain. It is resolved within Docker
containers using the `--add-host` feature, allowing you to test the
migration without modifying your host's DNS settings.

    Example output:

    ======================================================
EKS deploy complete
EKS_CLUSTER_NAME : proxy-demo-eks
EKS_ALB_HOSTNAME : a12f33b-1732972728.us-west-1.elb.amazonaws.com
EKS_ALB_IP       : 198.51.100.10
======================================================
    1. Export the EKS_ALB_IP programmatically from the Terraform output:
    export EKS_ALB_IP=$(terraform -chdir=terraform/aws output -raw lb_ip)
echo "EKS ALB IP: ${EKS_ALB_IP}"
    1. Verify the application:
    curl -s -o /dev/null -w "%{http_code}\n" -H "Host: proxy-demo.test" http://${EKS_ALB_IP}/

    A 200 response confirms EKS is serving traffic.

Start the load test and local proxy

Start a continuous load test against http://proxy-demo.test now, before deploying anything to GKE. Locust stays running for the rest of the tutorial. The dashboard gives you a live view of throughput, latency, and error rate as you provision infrastructure, shift traffic, and decommission the proxy.

Use Docker Compose to run Locust and a local NGINX proxy to avoid modifying your host's DNS settings.

  1. Start the load test and local UI proxy:

    export TARGET_IP=${EKS_ALB_IP}
docker compose -f locust/docker-compose.yaml up -d --build

    Leave this running in the background.

  2. Open a browser at http://localhost:8080. You see the orange AWS page showing the cluster name and region.

  3. Open the Locust dashboard at http://localhost:8089. The test is already running.

  4. Wait two minutes for the test to stabilize, then note the baseline numbers from the dashboard. You compare against these at each stage of the migration.

    Example baseline values: - Throughput: ~23 req/s - Median latency: 70 ms - P99 latency: ~140 ms - Error rate: 0.00%

Provision and configure your GKE environment

Provision a GKE Autopilot cluster and set up Cloud NAT so the proxy can reach the EKS endpoint.

  1. Set your project ID and authenticate:

    export PROJECT_ID=YOUR_PROJECT_ID
gcloud config set project $PROJECT_ID
gcloud auth application-default login

    Replace YOUR_PROJECT_ID with your Google Cloud project ID.

  2. Deploy the GKE infrastructure:

    scripts/02-deploy-gcp.sh

    This step takes approximately 10 minutes. The script provisions the following resources: - VPC with auto subnets - GKE Autopilot cluster with Gateway API enabled - Cloud Router and Cloud NAT - Reserved regional static IP for NAT egress - Reserved global static IP for the GKE Gateway - Kubernetes ConfigMaps, Deployment, and ClusterIP Service with NEG annotation

    Example output:

    ======================================================
GKE deploy complete
GKE_CLUSTER    : proxy-demo-gke
GKE_GATEWAY_IP : 34.8.99.54
NAT_IP         : 136.115.85.250
======================================================

Migrate your workloads and shift traffic

In this stage, you shift traffic from EKS to GKE. The EKS to GKE migration guide describes several approaches for traffic shifting, including DNS routing policies, Hybrid connectivity NEGs with Cloud Load Balancing, and a proxy with Cloud Service Mesh. This guide uses a GKE Gateway with HTTPRoute, which provides weighted traffic splitting.

Deploy your workloads

The migration script deploys the GKE Gateway, NGINX proxy, and HTTPRoute. It waits for the Gateway to reach PROGRAMMED status and the proxy pod rollout before exiting. All traffic is initially routed 100% through the proxy to EKS. GKE is in the path but not yet serving requests.

  1. Run the migration script:

    scripts/03-migrate.sh

    The script deploys the following resources: - GKE Gateway proxy-demo-gateway bound to the reserved static IP - NGINX proxy ConfigMap, Deployment, and ClusterIP Service with NEG annotation - HTTPRoute proxy-demo-httproute with 100% weight to the proxy and 0% to GKE

    Example output:

    ======================================================
Migration resources deployed

Gateway IP   : 203.0.113.50
Proxy target : a12f33b-1732972728.us-west-1.elb.amazonaws.com
HTTPRoute    : 100% proxy / 0% GKE
======================================================

  2. Confirm the proxy pod is running and not in CrashLoopBackOff. A crash might mean EKS_ALB_HOSTNAME was empty or the Cloud NAT egress IP is not yet permitted by the EKS security group:

    kubectl get pods -n app -l app=eks-proxy

  3. Confirm the NEG annotation is registered on the proxy Service. The HTTPRoute weight splits do not work if the NEG endpoints are unhealthy:

    kubectl describe svc eks-proxy -n app

    Example output:

    Annotations:  cloud.google.com/neg: {"exposed_ports":{"80":{}}}
              cloud.google.com/neg-status: {"network_endpoint_groups":{"80":"k8s1-d583becf-app-eks-proxy-80-6fb2f3af"},"zones":["us-central1-c","us-central1-f"]}
...
Events:
  Type    Reason  Age                From                   Message
  ----    ------  ----               ----                   -------
  Normal  Create  12m                neg-controller         Created NEG "k8s1-d583becf-app-eks-proxy-80-6fb2f3af"...
  Normal  SYNC    3s (x28 over 12m)  sc-gateway-controller  SYNC on app/eks-proxy was a success

Validate your workloads and GKE environment

Confirm that requests routed through the Gateway and proxy are reaching EKS before cutting over proxy-demo.test.

  1. Get the Gateway IP address from the Terraform output:

    export GKE_GATEWAY_IP=$(terraform -chdir=terraform/gcp output -raw gateway_ip)
echo "GKE Gateway IP: ${GKE_GATEWAY_IP}"

    Example output:

    GKE Gateway IP: 34.8.99.54

  2. Send a request to the Gateway IP with the expected Host header:

    curl -i -H "Host: proxy-demo.test" http://${GKE_GATEWAY_IP}/

    Example output:

    HTTP/1.1 200 OK
...
<body>
<div class="label">Running on</div>
<div class="provider">AWS</div>
<div class="platform">Amazon EKS</div>
</body>

    A 200 response with AWS as the provider confirms the GKE Gateway is routing traffic through the proxy to the EKS backend.

Shift traffic from EKS to GKE

The shift happens in two stages. First, you cut over DNS so that proxy-demo.test resolves to the GKE Gateway. The proxy still forwards everything to EKS, so the response is identical. Then you use HTTPRoute weights to move traffic from the proxy to the GKE backend in increments, checking the Locust dashboard at each step.

DNS cutover

With the proxy validated, you now point proxy-demo.test at the GKE Gateway IP instead of the EKS ALB. After this step, all traffic for proxy-demo.test enters through Google Cloud.

The proxy is still forwarding 100% of requests to EKS, so the page content doesn't change. What changes is the path: requests travel through the GKE Gateway and proxy before reaching EKS. If something is wrong with that path, like a missing NAT route or a blocked port, you find out now, while EKS is still doing the actual serving.

In this tutorial you simulate the DNS cutover by restarting the local Docker containers to point at the GKE Gateway IP.

  1. Restart the load test and proxy with the new target IP:

    export TARGET_IP=${GKE_GATEWAY_IP}
docker compose -f locust/docker-compose.yaml up -d --force-recreate

  2. Reload http://localhost:8080. The page still shows orange. The requests are now going to the GKE Gateway, which routes 100% through the proxy to EKS.

  3. Check the Locust dashboard http://localhost:8089. The cutover does not cause any errors. If you see a brief latency spike during the DNS cutover, that's normal. It settles within a few seconds.

Production DNS cutover process

In a production environment, you would update your DNS records instead of restarting a local proxy container. Keep in mind that not all resolvers respect TTL values, so plan for a propagation window:

  1. Lower the TTL on your A or CNAME record to a short value well in advance of the cutover.
  2. Update the record in your DNS provider to point to the GKE Gateway IP.
  3. After propagation completes and all traffic arrives at the GKE Gateway, proceed to traffic shifting.

For more on DNS considerations during migration, see Best practices for validating a migration plan.

Incremental traffic shifting

Update HTTPRoute weights to shift traffic from the proxy to the GKE backend. At each step, 04-test-traffic.sh applies the patch and runs 10 curl requests to spot-check the split. After each shift, check the Locust dashboard to confirm throughput and error rate are holding before moving to the next step.

If the error rate rises above 0% or latency increases significantly at any point, stop and investigate before shifting more traffic.

Note: GKE Gateway changes can take 30–60 seconds to propagate. If the traffic split doesn't match the weights, wait 30 seconds and run the script again.

  1. 80/20 — Shift 20% of traffic to GKE:

    scripts/04-test-traffic.sh 80 20

    Example output:

    Applying Traffic Patch: EKS=80, GKE=20
---------------------------------------------------
httproute.gateway.networking.k8s.io/proxy-demo-httproute patched (no change)

Verifying Cluster Weights:
  eks-proxy: 80
  proxy-demo: 20

Testing Live Traffic (10 requests):
---------------------------------------------------

Step 3: Waiting for propagation...
---------------------------------------------------
Polling for GKE traffic detection...
Syncing: attempt 15/60...
[OK] Detected traffic! Propagation in progress.

Propagation window complete. Starting traffic test.
Request 1: AWS
Request 2: AWS
Request 3: AWS
Request 4: Google Cloud
Request 5: AWS
Request 6: AWS
Request 7: AWS
Request 8: AWS
Request 9: Google Cloud
Request 10: AWS
------------------------------------

Visual Verification
---------------------------------------------------
1. Open your browser to: http://localhost:8080
2. Refresh 10 times: Orange = EKS (AWS), Blue = GKE (Google Cloud)

    Note: Locust also driving traffic, so results vary.

  2. 50/50 — Shift to an even split:

    scripts/04-test-traffic.sh 50 50

    Expected result: ~5 AWS and ~5 Google Cloud. On the Locust dashboard, you might see a small change in median latency as the two backends have different response times.

  3. 20/80 — Shift the majority to GKE:

    scripts/04-test-traffic.sh 20 80

    Expected result: ~2 AWS and ~8 Google Cloud. Median latency on the dashboard might drop as more requests go directly to GKE without the proxy hop.

  4. 0/100 — Complete the cutover:

    scripts/04-test-traffic.sh 0 100

    Expected result:

    Applying Traffic Patch: EKS=0, GKE=100
---------------------------------------------------
httproute.gateway.networking.k8s.io/proxy-demo-httproute patched (no change)

Verifying Cluster Weights:
  eks-proxy: 0
  proxy-demo: 100

Testing Live Traffic (10 requests):
---------------------------------------------------

Step 3: Waiting for propagation...
---------------------------------------------------
Polling for GKE (Google Cloud) traffic detection...

[OK] Detected traffic! Propagation in progress.

Propagation window complete. Starting traffic test.
Request 1: Google Cloud
Request 2: Google Cloud
Request 3: Google Cloud
Request 4: Google Cloud
Request 5: Google Cloud
Request 6: Google Cloud
Request 7: Google Cloud
Request 8: Google Cloud
Request 9: Google Cloud
Request 10: Google Cloud
------------------------------------

Visual Verification
---------------------------------------------------
1. Open your browser to: http://localhost:8080
2. Refresh 10 times: Orange = EKS (AWS), Blue = GKE (Google Cloud)

  5. Reload http://localhost:8080. Every reload shows the blue GKE page.

  6. Check the Locust dashboard http://localhost:8089. Confirm the test are steady before proceeding to decommission.

Monitor the shift in Google Cloud console

The Locust dashboard shows client-side metrics. For server-side visibility, you can watch the transition in Cloud Monitoring.

  1. In the Google Cloud console, go to Monitoring > Metrics Explorer.

  2. Switch to the PromQL tab and paste the following query:

    sum by (backend_target_name) (
  increase(loadbalancing_googleapis_com:https_request_count{
    monitored_resource="https_lb_rule",
    backend_target_name=~".*proxy-demo.*|.*eks-proxy.*"
  }[1m])
)

    The eks-proxy line descends and the proxy-demo line ascends as you shift weights.

Decommission the source environment

With traffic on GKE, remove the proxy resources. They are no longer in the traffic path.

  1. Verify the HTTPRoute sends 0% to the proxy:

    kubectl get httproute proxy-demo-httproute -n app -o yaml | \
  awk '/name:/ {name=$2} /weight:/ {print "  " name ": " $2}'

    Expected output:

      eks-proxy: 0
  proxy-demo: 100

  2. Delete the proxy Deployment, Service, and ConfigMap:

    kubectl delete deployment eks-proxy -n app
kubectl delete service eks-proxy -n app
kubectl delete configmap eks-proxy-config -n app

  3. Confirm the proxy resources are removed:

    kubectl get deployment,service,configmap -n app

    The output shows only the proxy-demo Deployment and Service. No eks-proxy resources remain.

Validate the migration

  1. Return to the terminal where you ran docker compose and stop the local containers:

    docker compose -f locust/docker-compose.yaml down

    You can view the final Locust test summary in your terminal output.

    Example output:

    Type     Name        # reqs      # fails |    Avg     Min     Max     Med |   req/s  failures/s
--------|-----------|-------|------------|-------|-------|-------|-------|--------|-----------
GET      /            12840      0(0.00%) |     52      31    1700      38 |   18.61        0.00
GET      /health       3210      0(0.00%) |     50      31    1439      38 |    4.86        0.00
--------|-----------|-------|------------|-------|-------|-------|-------|--------|-----------
Aggregated            16050      0(0.00%) |     52      31    1700      38 |   23.47        0.00

    The aggregate numbers cover the full migration window. In this run, the 0% error rate indicates that traffic was handled without interruption across all phases: DNS cutover, traffic shifting, and proxy decommission.

    The median latency in the aggregate, 38 ms, is lower than the EKS baseline, 70 ms, because the later portion of the test ran against GKE directly. On the Locust dashboard's charts tab, you can see the latency drop as traffic shifted from the proxy path to GKE.

    The elevated maximum, 1700 ms, comes from GKE Autopilot's on-demand node scheduling. The first requests to a freshly scheduled pod wait for the node to provision. These outliers decrease after the cluster reaches steady state.

Key performance comparison

Compare the dashboard's early baseline period, first 2–3 minutes, when EKS served 100% of traffic, against the final period, after 0/100 cutover:

Period Med Min Max req/s Errors
EKS baseline 70 ms 66 ms 145 ms ~23.4 0%
GKE final 38 ms 31 ms 1700 ms ~23.4 0%

Your numbers vary depending on region, instance type, and network conditions.

What the numbers show

  • Latency: Median response time dropped from 70 ms to 38 ms after the shift to GKE.
  • Stability: The error rate remained at 0% throughout this run.
  • Tail latency: The 1700 ms maximum reflects Autopilot cold-start node scheduling and is expected to decrease under sustained traffic.

Clean up

To avoid incurring charges to your AWS and Google Cloud accounts, delete the resources created in this tutorial. You can either delete the Google Cloud project or destroy the individual resources.

  1. Destroy the AWS resources:

    terraform -chdir=terraform/aws destroy \
  -var="prefix=${PREFIX}" \
  -auto-approve

  2. Destroy the Google Cloud resources:

    terraform -chdir=terraform/gcp destroy \
  -auto-approve

What's next
